Round
XLT

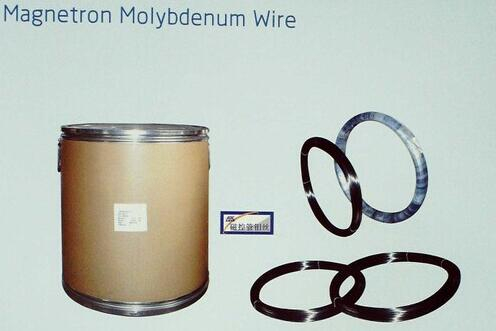

molybdenum wire 01
>10.2 g/cm3
3017℃
0.14j/gk
5425℃
Specifications
high purity 99.95% molybdenum wire
1. Physical and chemical properties
(1) Density: 10.2
(2) Surface roughness: < 1.6
(3) Purity:W99.97%(min.)
(4) Application temperature environment:1500~1800
2. Specifications:
1)Dimensions and tolerances Unit:mm
| Type | (Mo%) | [m / kg] | (g/cm3) | Notes |
| Mo-1 | >= 99.97 | 31.2 m/ kg --(Dia2mm) 87 m /kg --(Dia1.2mm) | >=10.2 | Temp:1000~12000C |
| MoA-1 | >= 99.95 | Temp:1200~18000C; |
Special sizes can be manufactured based on customers' requirements
| Dia (μm) | 200mm length tolerance(%) | Dia tolerance(%) | ||
| I | II | I | II | |
| 20<d≤30 | ±2.5 | ±3 |
|
|
| 30<d≤40 | ±2.0 | ±3 | -- | -- |
| 40<d≤100 | ±1.5 | ±3 | -- | -- |
| 100<d≤400 | ±1.5 | ±3 | -- | -- |
| 400<d≤600 | -- | -- | ±1.5 | ±2.5 |
| 600<d≤2500 | -- | -- | ±1.0 | ±2.0 |
Specifications
high purity 99.95% molybdenum wire
1. Physical and chemical properties
(1) Density: 10.2
(2) Surface roughness: < 1.6
(3) Purity:W99.97%(min.)
(4) Application temperature environment:1500~1800
2. Specifications:
1)Dimensions and tolerances Unit:mm
| Type | (Mo%) | [m / kg] | (g/cm3) | Notes |
| Mo-1 | >= 99.97 | 31.2 m/ kg --(Dia2mm) 87 m /kg --(Dia1.2mm) | >=10.2 | Temp:1000~12000C |
| MoA-1 | >= 99.95 | Temp:1200~18000C; |
Special sizes can be manufactured based on customers' requirements
| Dia (μm) | 200mm length tolerance(%) | Dia tolerance(%) | ||
| I | II | I | II | |
| 20<d≤30 | ±2.5 | ±3 |
|
|
| 30<d≤40 | ±2.0 | ±3 | -- | -- |
| 40<d≤100 | ±1.5 | ±3 | -- | -- |
| 100<d≤400 | ±1.5 | ±3 | -- | -- |
| 400<d≤600 | -- | -- | ±1.5 | ±2.5 |
| 600<d≤2500 | -- | -- | ±1.0 | ±2.0 |
